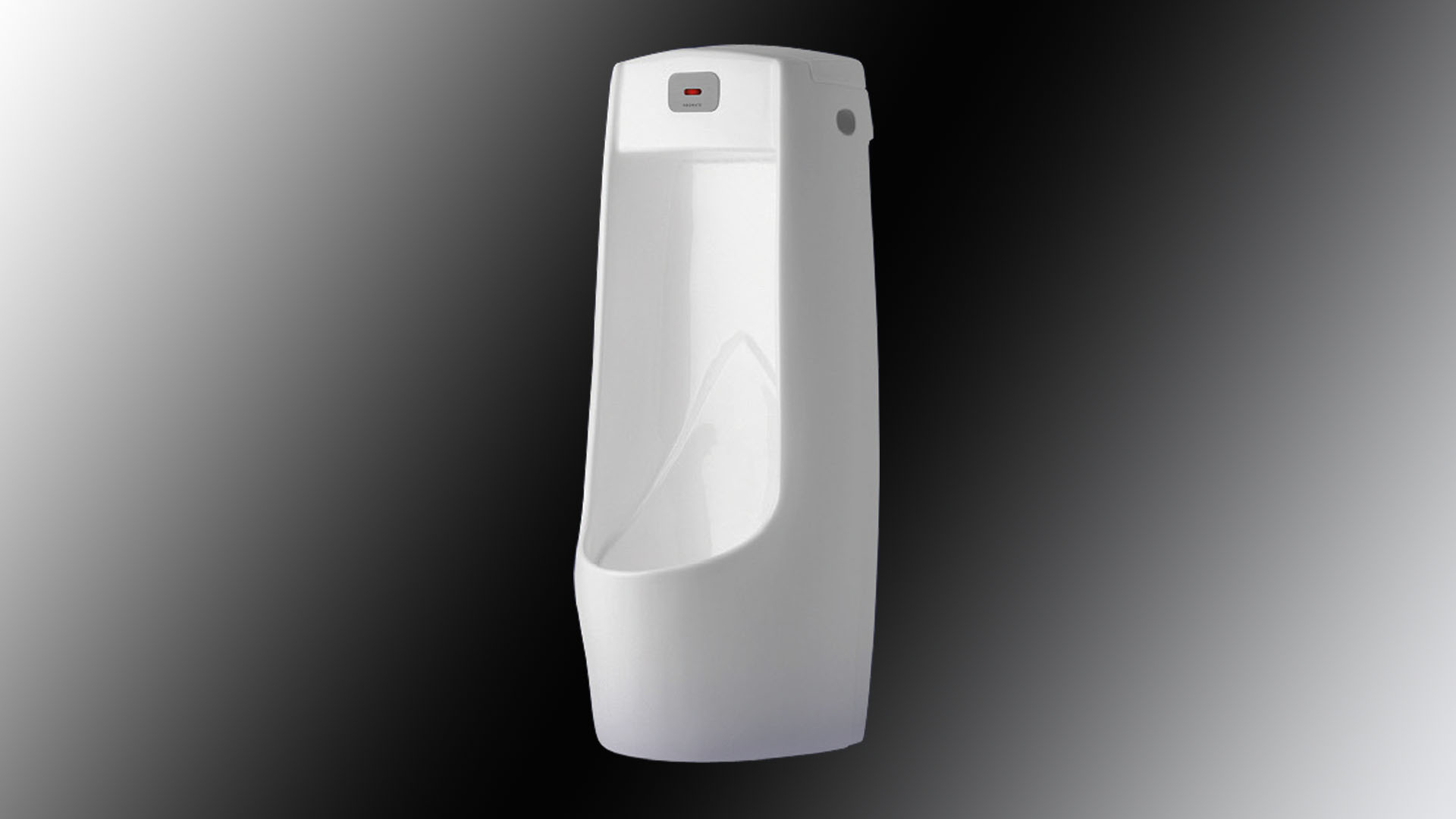

SPECIFICATION AT-380 ( Urinal Integrate Flush Valve)

Power : Adapter 6Vdc / alkaline battery (1.5Vx4 size AAX)
Working : The system's infrared sensor function.
Functions conditions 1 : Stand for 3 seconds and then release water sensors 3 seconds. (450 ml.)
Functions conditions 2 : When the sensor is out of the water 6 seconds. (850 ml.) After about 30 seconds to go. Going back to the first state.
Range : 40± 10 cm
Water pressure from : 0.7 – 10 Bar
optional features : The cleaning itself every 12 hours.
Delay flushing water : Water 6 times per second
Water supply : 3 seconds, 0.45 liter / 6 seconds 850ml. (the water pressure of 2.5 bar).
installation : Floor
Sewer Outlet : Wall Mounted
Pipe Fitting : Ø ½ “ PJ Water inlet
Material : Porcelain ceramics.

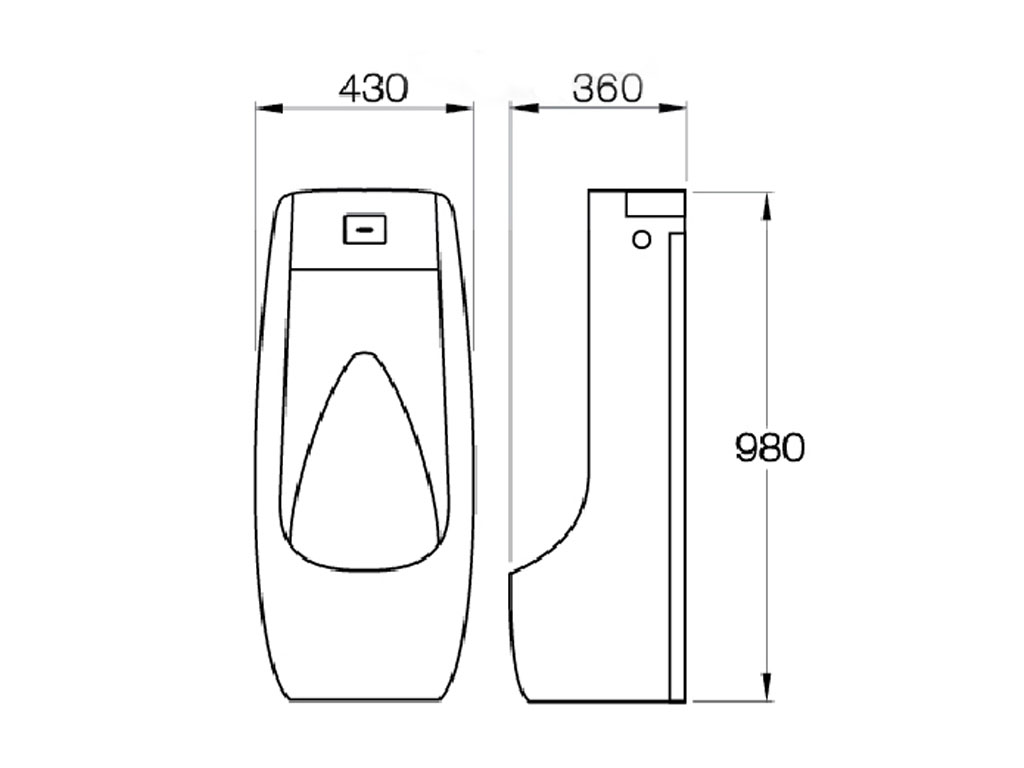

Dimension : 430 x 360 x 980 mm
