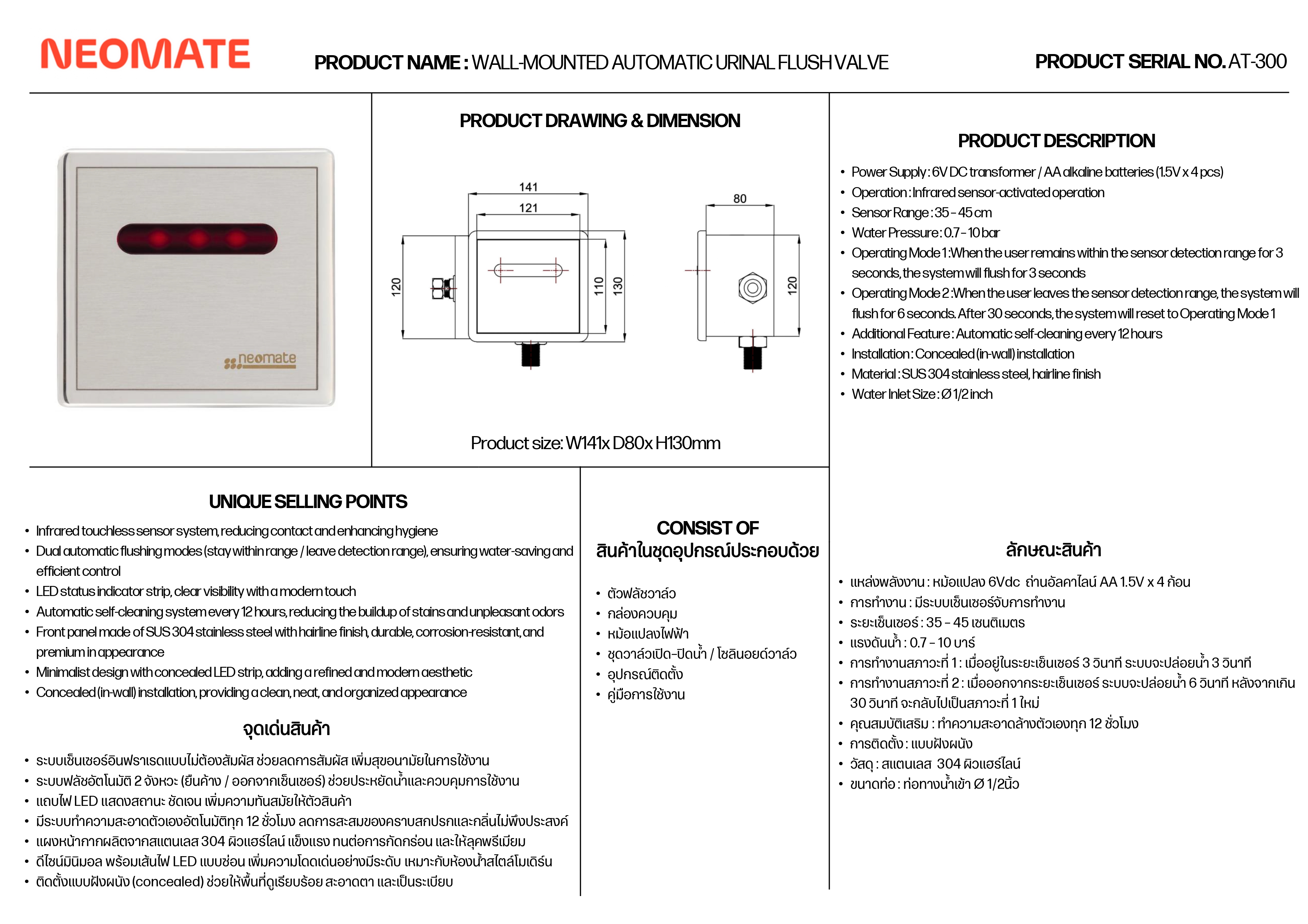

SPECIFICATION AT-300 ( Urinal Integrate Flush Valve)

 • Power : Adapter 6Vdc / alkaline battery (1.5Vx4 size AAX)
 • Working : The system's infrared sensor function.
 • Functions conditions 1 : Stand for 3 seconds and then release water sensors 3 seconds. (0.54 liter.)
 • Functions conditions 2 : When the sensor is out of the water 6 seconds. (1.08 liter .) After about 30 seconds to go. Going back to the first state.
 • Range : 60± 10 cm
 • Water pressure from : 0.7 – 10 Bar
 • optional features : The cleaning itself every 12 hours.
 • Delay flushing water : Water 6 times per second
 • Water supply : 3 seconds, 0.54 liter / 6 seconds 1.08 liter. (the water pressure of 1.0 bar).
 • installation : covers a wall
 • Sewer Outlet : Out back
 • Pipe Fitting : Ø ½ “ PJ Water inlet
 • Material : Stainless steel sensor covers 304
 • Water supply : 10.90 liters of water 1 minute, 6 seconds, 1.08 liters of water.


*** Green Label requirements for urinal flush valves, driving the nominal size 15 (size 1/2 inch water pipe) to a flow rate of up to 1.6 liters of water at pressure 0.15 ± 0.01 MPa (1.5. bar)

*** Testing Standards Institute's Automotive. Our water is a maximum time of 6 seconds, or 1.08 per liter cheaper than the standard set up to 0.52 liters.
